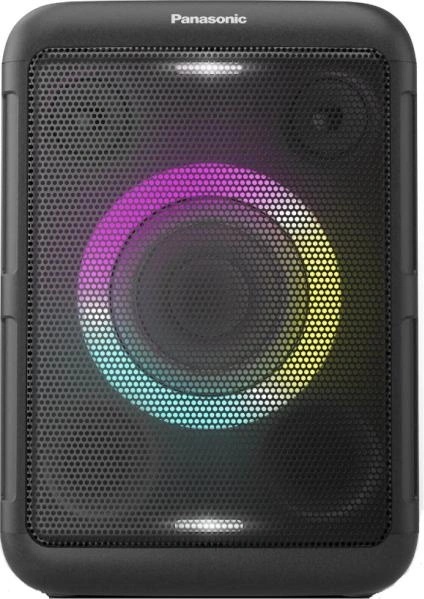

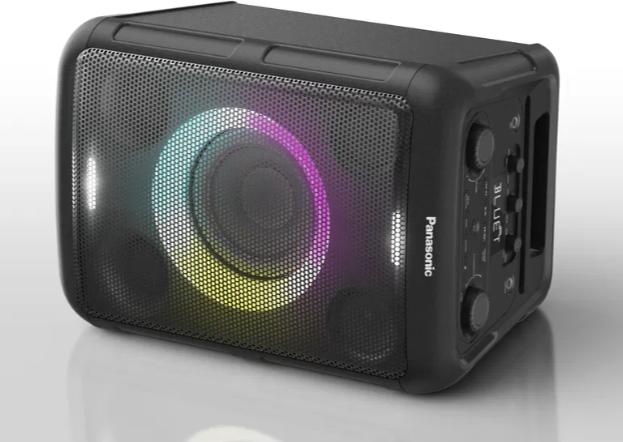

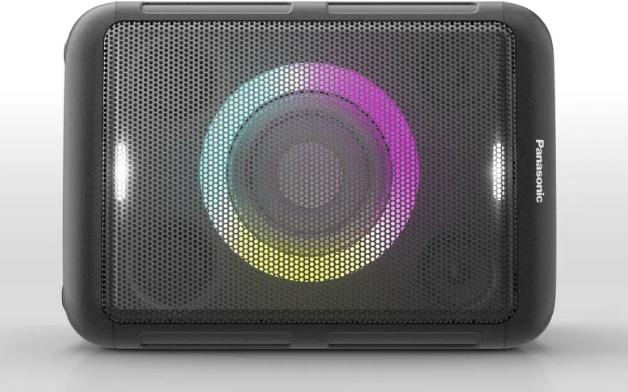

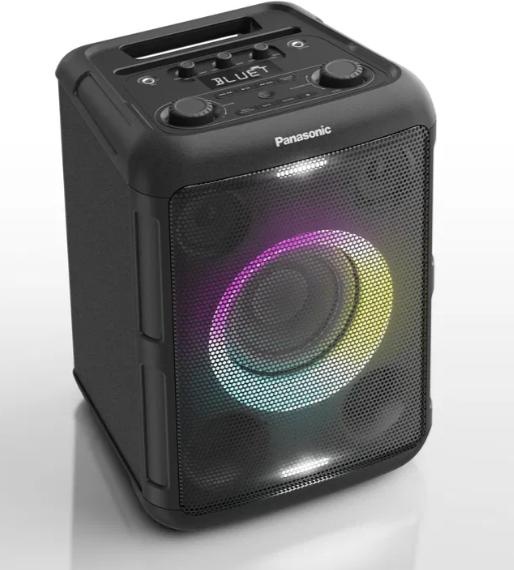

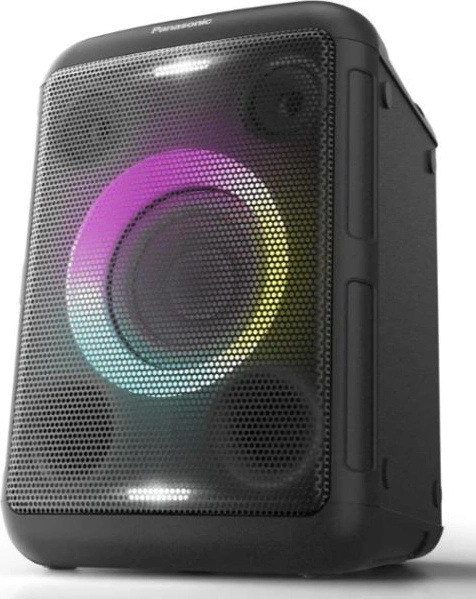

Panasonic SC-BMAX5 Free Your Music, Express Yourself BMAX5 is made for your own space and when you’re on the go. A highly portable party speaker with impressive sound quality, modern style, and built-in 9 hour* rechargeable battery. It features customisable illumination with stacks of connectivity for Bluetooth, AUX, USB, Guitar and Mic – so you can experience music how and where you want. Big Sound, Small Package The compact BMAX5 packs 75W of pure power when plugged in. With a single 14cm woofer and bass port and two tweeters, it delivers punchy detail across the sonic spectrum. From full-on bass lines to crystal-clear vocals and soaring highs, BMAX brings it all. And for bass lovers, there’s Bass Boost to take things down real low. Live and Spontaneous Vibes BMAX loves recorded and live music in equal measure. It brings both guitar and mic jacks to the party, each with volume adjustment, and there’s an echo dial for extra atmosphere. Great for chilling with a few friends or taking a party up a level. And did anyone mention karaoke? Bright Lights, Big Atmosphere Caged behind BMAX’s metal grille is a light show ready to be unleashed. With 12 different lighting patterns and seven bright colours at your fingertips you can get creative. Work with the beat or freestyle it. Want more? Good, because BMAX5 brings two strobe lights to the party! Simple, Intuitive Operation No one wants a party to lose the vibe if the music stops. BMAX has this covered with intuitive controls and a clever groove to rest your smart device in. Goodbye fiddly little switches, hello big round buttons and dials, plus an LED input screen to confirm which source you’re playing from. Sound and Vision, In Harmony Pair BMAX5 with your TV, using the supplied optical cable. While your smart TV shows karaoke lyrics, BMAX controls the sounds. Celebrate the summer’s big music festival or hotly anticipated singing contest in style. Get to grips with BMAX Today, everyone and everything needs to be flexible – BMAX5 is no exception. Thanks to its integrated carry handle, you can move it around the home or take it on new adventures outside. Untethered by a power cable, BMAX is perfect for street dance, exercise, and gym sessions, or just hanging with friends. Change It Up with Chain Connection Connect your BMAX to another BMAX5, using a 3.5mm audio cable, and pick the stereo mode for even more dynamic sound. Take things up a level by connecting a third BMAX5, for bigger spaces and bigger fun. Specifications  Color

• Color
• Black

  Amplifier

• Amp Type
  • 2ch Digital Amp (Stereo)
• RMS Output Power (AC Power Supply)
  • Front ch
    • 75 W
      15 W x2 + 45W (30% THD)
  • Subwoofer ch
    • -
  • Total RMS Stereo mode power
    • 75 W
• RMS Output Power (Battery Power Supply)
  • Front ch
    • 25W
      2.5 W x2 + 20 W (1% THD)
  • Subwoofer ch
    • -
  • Total RMS Stereo mode power
    • 25 W

  Speaker Unit

• Front Speaker
  • 5.7 cm Tweeter x2
    14 cm Woofer x1
• Subwoofer
  • - < /li>
• Bass Expand
  • Bass Reflex Port

 CD / DVD

• Playback Disc
  • -
• Format
• -

Internal memory

• Internal memory
  • Capacity
    • -
  • Media file format support
    • -

 USB

• USB Port
  • USB (Play & Charge(1A))
• USB Standard
  • USB 2.0 full speed
• Support Format
  • MP3
• Play back
  • Y *2

 Radio < /p>

• Station Presets
  • FM
    • -
  • DAB Plus
    • -
Radio Data System
• -
• Antenn a Terminal
  • -

 Network

• Bluetooth
  • Version
    • Ver. 5.0
  • Class
    • Class 1
  • Codec
    • SBC
  • Multi-point
    • Y(Conn ect up to 2 devices at a time. )
  • One Touch Operation from Panasonic TV
    • -
• NFC
  • -



Smartphone App

• App Name
  • -
• OS
  iOS
  • -
  • Android
    • -
  • Windows Phone
    • -
  • Other
  • -

 Illumination

• Illumin ation
  • Multi-color Speaker Illumination (7 color)
• Flash Light
  • Y

  < /p>Sound Function

• Super Sound EQ, Super Bass Sound
  • D. Bass
    • -
  • D. Bass Beat
    • -
Bass
• Y
• Preset EQ
  • 5 types (ROCK, JAZZ, SAMBA, POP, FLAT)
• Manual EQ
  • -
• Room-Filli ng Expansive Sound
  • -
• DJ Function
  • Effect
    • -
  • Sampler
    • -
  • Karaoke Jukebox
    • -
  • DJ Jukebox
    • -
• Low Distortion Technology
  • -
• Ka raoke
  • Y (Echo Level Setting)

  Terminals

• USB Port
  • x1
• Audio IN
  • AUX (3.5mm) x1 / Opt-in (Square type) x1
• Audio OUT
  • x1 (3.5mm)
• Guitor IN
  • x1 (6.3mm)
• Mic Jack
  • x1 (6.3mm)
• LAN
  • -

 General

Power Supply

• AC
  • AC 110 - 240 V, 50H/60Hz

Pow er Consumption *³

• Normal Use
  • 40 W
• Low Power Mode
  • 0.5 W
• Bluetooth Low Power Mode
  • 2.0 W

Built-in Battery Operation

• Type
  • Li-ion 2 cell, 7.2V, cap : 2475mAh
• Playback Time
  • Approx. 9 hours *⁴
• Charging Time (25℃)
  • Approx. 3 hours
• Battery Level Indication
  • Y

< /li>

Qi Charger

• Output Power
  • -

< li>Display Type

• UNION Jack (White color)

Dimmer

• Y

Auto Power OFF

• Y

Timer Function

• Sleep
  • -
• Clock
  • -
Play Timer
• -
• Rec Timer
  • -

< li>External Power Bank Operation

• -

Han dle

• Built-in Handle

Horizontal / Vertical Placement

• Y

 Dimensions, Weight

• Main Unit
  • Dimensions (W x H x D) (w/o carton)
    • 280 x 397 x 293 mm
  • Dimensions (W x H x D) (with carton)
    • 362 x 478 x 338 mm
  • Weight (w/o carton)
    • 6.5 kg
  • Weight (with carton)
    • 9 kg



Note

• Pla yability may vary depending on the contents, discs and quality of the recording.
• Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc. ) using a USB extension cable.
• This battery playtime is only a reference and may vary depending on music content and battery aging after numerous charging and discharging cycles. It's achievable with a predefined music source, illumination light switched off, FLAT EQ mode, volume level at 28(SC-BMAX5) or 29(SC-BMAX10), and Bluetooth(R) streaming source.
